KTM Class 29 Locomotive

Lokomotif ini dibeli oleh Kerajaan Malaysia daripada syarikat Dalian yang berpangkalan di China dengan tukaran minyak sawit. Pada beberapa tahun permulaannya, lokomotif ini sering menghadapi pelbagai masalah, sehinggakan hanya lima daripada 20 lokomotif berfungsi. Walau bagaimanapun, setelah proses overhaul dilakukan, akhirnya lokomotif Dalian Class 29 ini kenbali berfungsi. Berkeupayaan membawa beban melebihi 2000 tan, lokomotif ini kini selalunya digunakan untuk mengangkut keretapi barang ataupun penumpang tren shuttle ke Ipoh / KL sentral.

Spesifikasi

  • KTM Class: 29
  • Buatan: DLoco Locomotive and rolling Stock Co, China
  • Kuasa kuda: 3 500
  • Diperkenalkan: 2005
  • Tractive effort: tidak diketahui
  • Kelajuan maksima: 120 km/h
  • Enjin: MAN RK 215
  • Transmisi: tidak diketahui
  • Status: Masih digunakan

Fleet info

Range: 29101 – 29120

  • 29101 CENGAL
  • 29102 MERANTI
  • 29103 MERBAU
  • 29104 JATI
  • 29105 MERSAWA
  • 29106 BELIAN
  • 29107 KERANJI
  • 29108 BALAU
  • 29109 KERUING
  • 29110 PENAGA
  • 29111 SERAYA
  • 29112 DAMAR
  • 29113 NYATOH
  • 29114 RAMIN
  • 29115 KEMPAS
  • 29116 SEPETIR
  • 29117 TEMBUSU
  • 29118 TUALANG
  • 29119 MEDANG
  • 29120 KLEDANG

Nota pengarang

  1. braderdm.blogspot.com – maklumat fleet dan spesifikasi

Lokomotif ini dibeli oleh Kerajaan Malaysia daripada syarikat Dalian yang berpangkalan di China dengan tukaran minyak sawit. Pada beberapa tahun permulaannya, lokomotif ini sering menghadapi pelbagai masalah, sehinggakan hanya lima daripada 20 lokomotif berfungsi. Walau bagaimanapun, setelah proses overhaul dilakukan, akhirnya lokomotif Dalian Class 29 ini kenbali berfungsi. Berkeupayaan membawa beban melebihi 2000 tan, lokomotif ini kini selalunya digunakan untuk mengangkut keretapi barang ataupun penumpang tren shuttle ke Ipoh / KL sentral.

Spesifikasi

  • KTM Class: 29
  • Buatan: DLoco Locomotive and rolling Stock Co, China
  • Kuasa kuda: 3 500
  • Diperkenalkan: 2005
  • Tractive effort: tidak diketahui
  • Kelajuan maksima: 120 km/h
  • Enjin: MAN RK 215
  • Transmisi: tidak diketahui
  • Status: Masih digunakan

Fleet info

Range: 29101 – 29120

  • 29101 CENGAL
  • 29102 MERANTI
  • 29103 MERBAU
  • 29104 JATI
  • 29105 MERSAWA
  • 29106 BELIAN
  • 29107 KERANJI
  • 29108 BALAU
  • 29109 KERUING
  • 29110 PENAGA
  • 29111 SERAYA
  • 29112 DAMAR
  • 29113 NYATOH
  • 29114 RAMIN
  • 29115 KEMPAS
  • 29116 SEPETIR
  • 29117 TEMBUSU
  • 29118 TUALANG
  • 29119 MEDANG
  • 29120 KLEDANG

Nota pengarang

  1. braderdm.blogspot.com – maklumat fleet dan spesifikasi

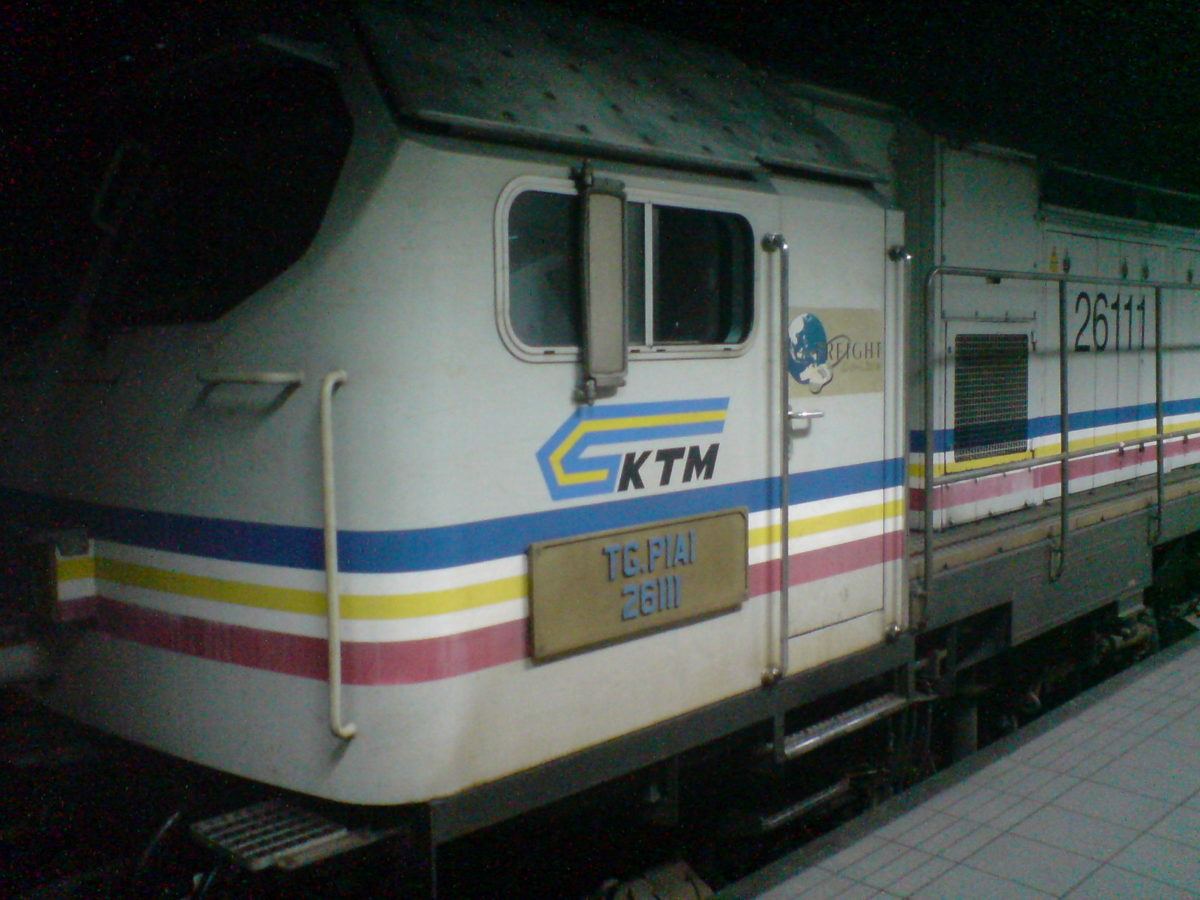

KTM Class 26 Locomotive

KTM Class 26 (aka Blue Tiger) is a group of 20 locomotives owned by KTM Berhad (KTMB).

The first batch of locomotives was first received by KTM Berhad on 2 October 2003. According to keretapi.com, another 15 locomotives will arrive by the year’s end. According to the same source also, this 3000hp locomotive is the most powerful locomotive that KTMB owns. It was built by Bombardier, Germany (Adtranz/General Electric collaboration).

Recently the Blue Tiger resurfaced again in mainstream newspapers because it has been used by a Johorean royalty for their Kembara Mahkota Program.

According to anonymous sources from the rail transport industry, the locomotive is more reliable than KTM Class 29 locomotive.

Specifications

  • Locomotive Type : DE – AC 33 C
  • Engine Type : GE 7FDL12
  • Cylinders : 12, 45-degree V arrangement
  • Bore: 228.6mm (9in)
  • Stroke: 266.7mm (10.5in)
  • Compression Ratio: 15.7 to 1
  • Traction Type: Diesel Electric AC/AC
  • Traction Motor: 5GEB24
  • Tractive Effort : Continuous – N/A, Maximum – 102500lbs / 456kN
  • Gear Ratio : 1:4.722 (18:85 cogs)
  • Control Voltage: N/A
  • Braking System(s): vacuum, air dual-pipe, dynamic
  • Weight: 120 tons
  • Axle Load: 20 tons max, 18.85 tons min
  • Loco Power Rating: 3300hp (nominal), 3100hp (site)
  • Maximum Speed: 120km/h (fully worn wheels)
  • Gauge : 1000mm (metre)
  • Wheel Arrangement: CO-CO
  • Wheel Diameter: 965mm max, 890mm min
  • Length Over Buffers: 22000mm
  • Fuel Capacity: 5500 litres
  • Sandbox Capacity : 240 litres (3 X 80l)

Fleet (locomotive number and name)

  • 26101 Tanjung Aru
  • 26102 Tanjung Bidara
  • 26103 Tanjung Dumpil
  • 26104 Tanjung Dungun
  • 26105 Tanjung Gelang
  • 26106 Tanjung Jara
  • 26107 Tanjung Karang
  • 26108 Tanjung Kupang
  • 26109 Tanjung Pelepas
  • 26110 Tanjung Penawar
  • 26111 Tanjung Piai
  • 26112 Tanjung Piandang
  • 26113 Tanjung Puteri
  • 26114 Tanjung Ramunia
  • 26115 Tanjung Rhu
  • 26116 Tanjung Selatai
  • 26117 Tanjung Sepat
  • 26118 Tanjung Tohor
  • 26119 Tanjung Tualang
  • 26120 Tanjung Tuan

Usage

KTM Intercity, KTM Freight

Sources

Source: http://www.keretapi.com/26class.html

http://braderdm.blogspot.com/search/label/Motive%20Power

KTM Class 25 Locomotive

KTM Class 25 Diesel Locomotive is a diesel locomotive operated by KTM Berhad.



Specifications

KTM Class25
Manufactured byGeneral Motors, Ontario, Canada
Horsepower1500 hp
Tractive effort43800
Maximum speed107 km/h
Engine6-645E 3C
TransmissionElectric



Fleet information

First batch (25101 – 25112) of KTM Class 25 Diesel Locomotive was delivered in 1990:

NumberName
25101PULAU ANGSA
25102PULAU BESAR
25103PULAU BIDONG
25104PULAU INDAH
25105PULAU JEREJAK
25106PULAU LABUAN
25107PULAU LANGKAWI
25108PULAU PANGKOR
25109PULAU PERHENTIAN
25110PULAU PINANG
25111PULAU REDANG
25112PULAU TIOMAN



Another batch (second batch) was delivered in 2002:

NumberName
25201ZAMRUD
25202DELIMA
25203NILAM
25204MUTIARA
25205BERLIAN







Sources

  1.  braderdm.blogspot.com

KTM Class 24 Locomotive

KTM Class 24 Diesel Locomotive is a diesel locomotive operated by KTM Berhad.

Specifications

KTM Class 24
Manufactured by Hitachi, Jepun
Horsepower 2400
Introduced 1987
Tractive effort 43 408
Maximum speed 120 km/h
Engine Pielstick SP16 PA4V 200 VG
Transmission Electric
Status Active in service



Fleet information

Original quantity: 26 locomotives (24101 – 24126)

24101PANGLIMA TEJA
24102MAT KILAU
24103TOK JANGGUT
24104MAT SALLEH
24105RENTAP
24106LONG JAFFAR
24107RAJA MAHADI
24108HANG JEBAT
24109HANG KASTURI
24110HANG LEKIR
24111HANG LEKIU
24112HANG NADIM
24113HANG TUAH
24114TUN TELANAI
24115TUN BIAJID
24116TUN KUDU
24117TUN TAHIR
24118TUN MAMAT
24119INDERA GAJAH
24120SERI LANANG
24121 TUN PERAK
24122BADANG
24123TOK NANING
24124TUN SIRAH
24125MEGAT TERAWIH
24126SANG SURA



Sources

  1. braderdm.blogspot.com

KTM Class 23 Locomotive

KTM Class 23 Diesel Locomotive is a diesel locomotive operated by KTM Berhad.

The locomotive is manufactured by Hitachi in Japan.

Specifications

KTM ClassClass 23
Manufactured byHitachi, Japan
Horsepower2160
Tractive effort46415
Maximum speed110 km/h
EnginePielstick SP12 PA4V 200 VG
TransmissionElectric

Fleet information

NumberName
23101Amanah
23102Bijak
23103Berani
23104Bersih
23105Cekap
23106Gagah
23107Handal
23108Hormat
23109Ikhlas
23110Jujur
23111Maju
23112Panduan
23113Pantas
23114Sedia
23115Setia

Sources

  1. braderdm.blogspot.com

ERL Desiro ET 425 M EMU

ERL Desiro ET 425 M EMU is used for  KLIA Ekspres and KLIA Transit. This EMU nominally operates at 160 km/h.

Design

coming soon

Specifications

Model:Desiro ET 425 M EMU
Manufacturer:Siemens AG
Carriages:4 (2 propulsion, 2 passenger)
Dimensions:68700 mm (L), 2840 mm (W), 4160 mm (H)
Weight:120 Metric Tonnes
Electrical System Voltage:25kV – 50 Hz
Acceleration:1.0 m/s2
Top speed:176 km/h

Usage

Currently, this monorail trainset is being used for KLIA Ekspres and KLIA Transit service.

Sources

  1. coming soon
